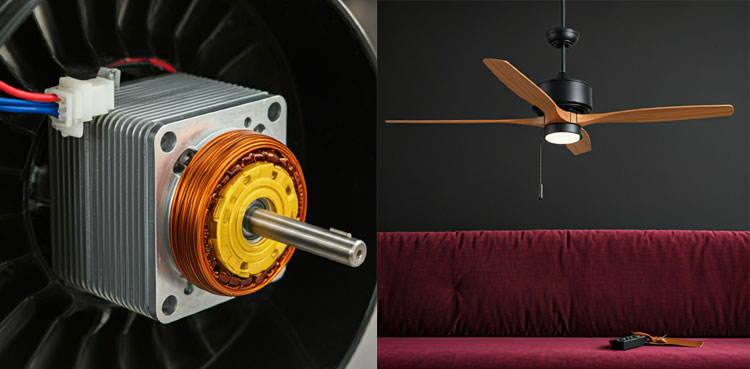

The Heart of AC/DC Fans: The Brushless Motor
- By Shahmir Kazi -
- Sep 14, 2024
A brushless motor is the driving force behind the efficiency and quiet operation of AC/DC ceiling fans. Unlike traditional brushed motors, which use carbon brushes to conduct electricity, brushless motors employ electronic commutation. This innovative design offers several significant advantages.
How Does a Brushless Motor Work?
- Electronic Commutation: Instead of mechanical brushes, a brushless motor uses electronic circuitry to control the sequence of power to the motor’s windings. This electronic commutation is achieved using sensors or back-EMF (electromotive force) feedback.
- Magnetic Field Interaction: The stator windings of the motor create a rotating magnetic field. The rotor, containing permanent magnets, is attracted to and rotates in alignment with this field.
- Continuous Rotation: As the rotor rotates, the electronic commutation system ensures that the stator windings are energized in the correct sequence to maintain the rotating magnetic field. This results in a smooth and continuous rotation.
Advantages of Brushless Motors in AC/DC Fans
- Efficiency: Brushless motors are highly efficient, converting more electrical energy into mechanical energy compared to brushed motors. This translates to lower energy consumption and reduced operating costs.
- Quiet Operation: The absence of mechanical brushes eliminates the noise and friction associated with traditional motors, resulting in a quieter and more pleasant operating environment.
- Long Lifespan: Without the wear and tear caused by mechanical brushes, brushless motors have a longer lifespan, reducing the need for frequent replacements or repairs.
- Precise Speed Control: Electronic commutation allows for precise control of the motor’s speed, enabling fans to operate at various levels to suit different preferences and needs.
- Enhanced Reliability: The absence of mechanical components prone to wear and tear makes brushless motors more reliable and less likely to fail.
In conclusion, brushless motors are a key component in the design of AC/DC ceiling fans. Their efficiency, quietness, and long lifespan make them a preferred choice for those seeking both performance and energy savings. By understanding the principles behind brushless motor technology, you can appreciate the innovative design that powers your home’s ceiling fans.
